How Kino Tower Achieved Better Workplace Acoustics Through Whole Building Acoustic Consultation
Introduction
The Growing Importance of Workplace Acoustics in Modern Office Buildings
Evolution of the workplace from traditional offices to collaborative environments.
Why acoustics has become a critical component of workplace performance.
Relationship between acoustic comfort, employee wellbeing, concentration, productivity, and organizational culture.
Challenges faced by many office developments in Asia where acoustics is often addressed too late in the design process.
Project Overview

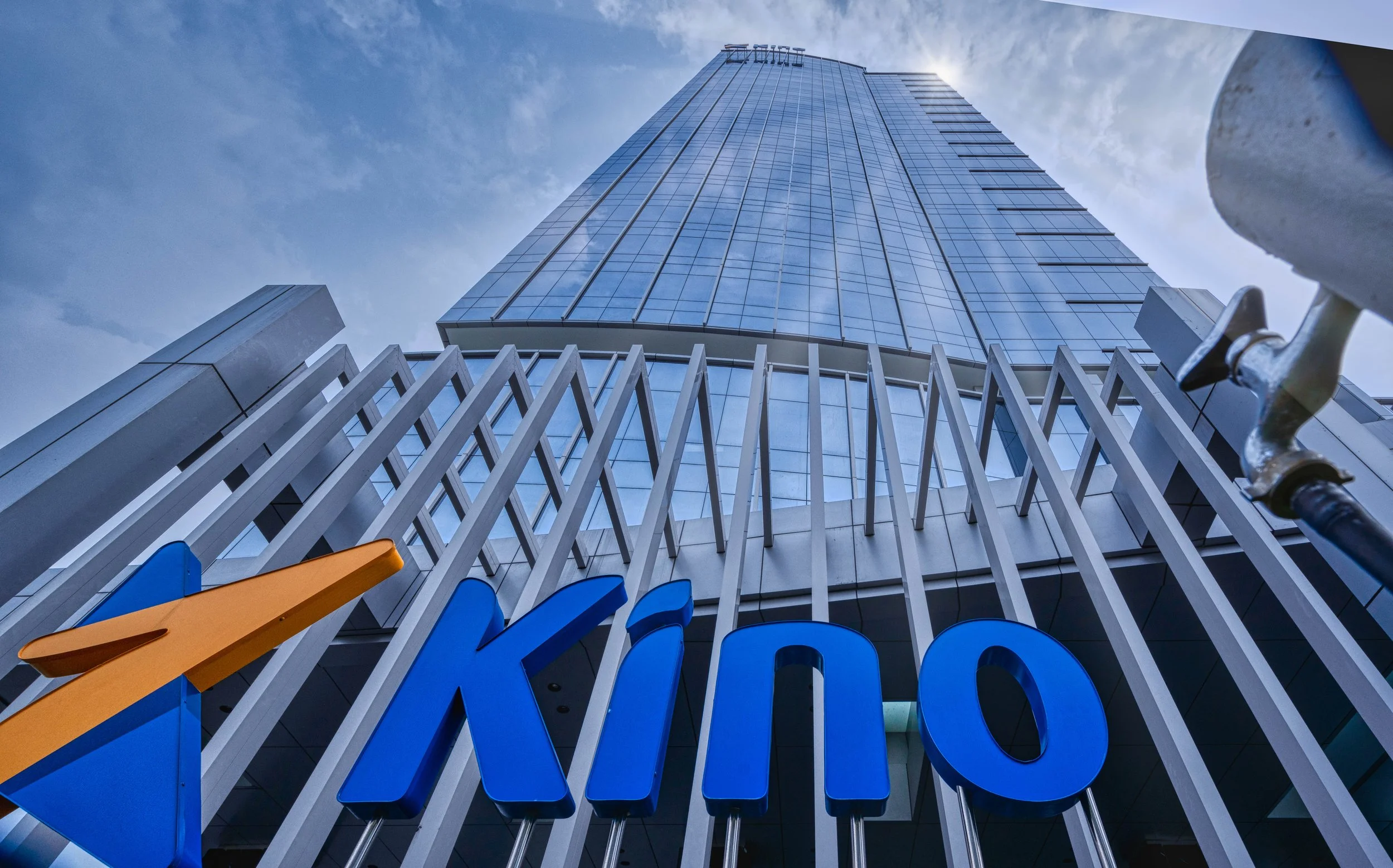

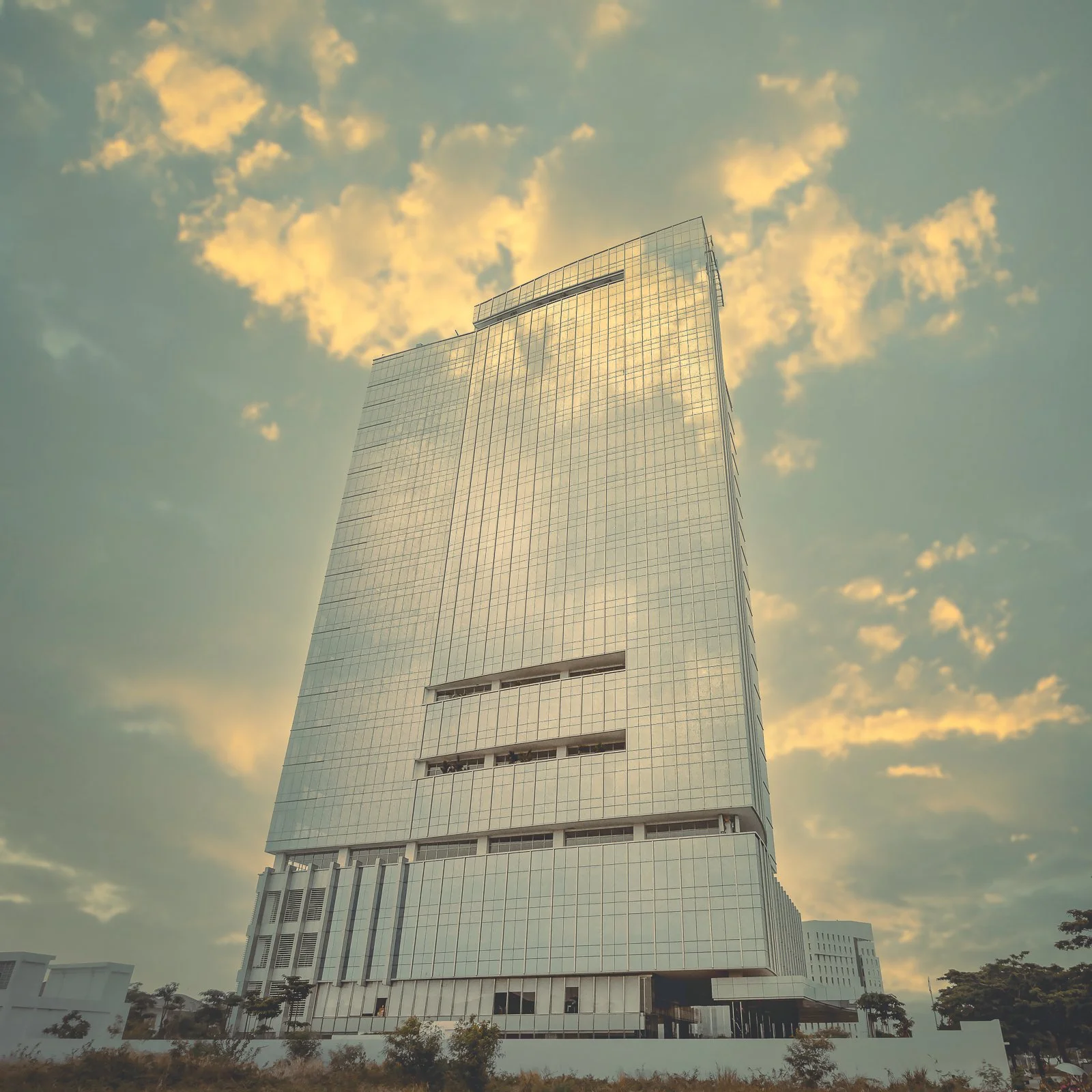

Located in Alam Sutera, Tangerang, Kino Tower is a 27-story Grade B office building completed in 2018 and developed as the corporate headquarters of PT Kino Indonesia Tbk. Designed by PT Arsita Interkreasi, the tower combines contemporary corporate architecture with a refined minimalist aesthetic, characterized by its sleek glass curtain wall façade and elegant marble-finished interiors.
Beyond serving as a corporate workplace, Kino Tower was envisioned as a multifunctional destination that supports a variety of business and public activities. The podium accommodates a diverse mix of facilities, including corporate functions, retail spaces, a fitness center, and the Black Swan Ballroom, a large public event venue capable of hosting conferences, corporate gatherings, and social events. This diverse program created a complex acoustic environment where different activities with varying sound requirements needed to coexist within a single building.
The project brought together a multidisciplinary team comprising PT Kino Indonesia Tbk and PT Royal Bintang Persada as the owners and developers, PT Arsita Interkreasi as the architectural and interior design consultant, PT Tatamulia Nusantara Indah as the main contractor, PT Gistama Inti Semesta as the structural consultant, PT Metakom Pranata as the mechanical, electrical, and plumbing (MEP) consultant, and ALTA Integra as the acoustic and audiovisual system consultant.
From the outset, the project team recognized that the building's acoustic performance would be critical to its long-term success. The coexistence of executive offices, open-plan workspaces, meeting facilities, public assembly spaces, retail functions, fitness facilities, and building services infrastructure presented challenges that could not be adequately addressed through isolated acoustic treatments alone.
Rather than relying on reactive solutions such as adding acoustic panels after construction, the project adopted a whole-building acoustic consultation approach. Acoustic performance was integrated into architectural planning, interior design, building services engineering, structural coordination, and audiovisual system design from the early stages of development. This performance-driven strategy enabled the team to manage sound transmission, speech privacy, room acoustics, mechanical noise, and vibration holistically across the entire building.
By treating acoustics as an integral component of building performance rather than a standalone technical requirement, Kino Tower established a foundation for a more comfortable, productive, and human-centered workplace environment while supporting the diverse operational requirements of a modern mixed-use corporate headquarters.
Understanding the Challenge
Why Acoustics Matters Beyond Meeting Rooms: The Hidden CostofPoor Acoustic Performance
Discussion of:
Lack of speech privacy.
HVAC noise.
Vertical noise transfer.
Open-plan office challenges.
Collaboration versus concentration conflict.
Acoustic Issues Commonly Found in Premium Office Towers
Examples:
Excessive reverberation.
Mechanical equipment noise.
Lift noise intrusion.
External traffic noise.
Open office distraction.
Meeting room confidentiality concerns.
Establishing Acoustic Performance Objectives
Defining Performance Criteria Early in Design
Aligning Acoustic Targets with Workplace Objectives
Discussion of:
Business goals.
Occupant expectations.
Tenant requirements.
Future workplace flexibility.
Key Acoustic Performance Metrics
Achieving high-quality workplace acoustics requires more than subjective impressions of whether a space sounds "quiet" or "comfortable." Acoustic consultants rely on measurable performance criteria to evaluate how sound behaves within and between spaces. At Kino Tower, a series of internationally recognized acoustic metrics were used to establish design targets, evaluate design alternatives, and verify acoustic performance throughout the project lifecycle.
These metrics can generally be categorized into four major areas: Building Acoustics, Room Acoustics, Environmental Noise, and Electroacoustics.
Building Acoustics
Building acoustics focuses on controlling sound transmission between adjacent spaces. In a modern office building, occupants expect confidential discussions to remain private, meeting rooms to operate without disturbing nearby workstations, and external noise sources to be effectively controlled. Building acoustic performance therefore plays a critical role in workplace comfort and productivity.
Sound Transmission Class (STC)
Sound Transmission Class (STC) is one of the most widely used indicators of airborne sound insulation performance. It measures how effectively a wall, partition, floor, door, or façade assembly can reduce the transmission of speech and other airborne sounds from one space to another.
In office environments, inadequate STC performance often results in conversations being clearly audible through meeting room walls or between adjacent offices. This can compromise both privacy and concentration.
At Kino Tower, STC criteria were established for different space types based on their functional requirements. Executive meeting rooms, confidential discussion areas, and boardrooms required higher levels of sound isolation than general workspace areas. By incorporating appropriate wall constructions, door systems, glazing specifications, and sealing details early in the design process, the project team was able to support both workplace communication and confidentiality requirements.
Weighted Sound Reduction Index (Rw)
Rw, or Weighted Sound Reduction Index, is the international equivalent of STC and is commonly used throughout Asia, Europe, and many international building standards. While STC and Rw are determined using slightly different calculation methods, both metrics serve a similar purpose: evaluating the sound insulation performance of building elements.
For multinational corporations operating across multiple countries, Rw often becomes particularly relevant because many international design guidelines, acoustic standards, and building certification systems reference Rw values rather than STC.
At Kino Tower, Rw criteria helped establish acoustic performance objectives that aligned with international workplace expectations while supporting consistency across project documentation and performance verification procedures.
Floor Impact Isolation
Not all unwanted noise travels through the air. Many disturbances originate as vibrations transmitted through the building structure itself.
Examples include:
Footsteps on elevated floors
Movement of office furniture
Rolling carts and equipment
Mechanical equipment vibration
Fitness facilities or active occupancies in mixed-use developments
Floor impact isolation measures the ability of a floor system to reduce structure-borne noise transmission between occupied levels.
In premium office developments such as Kino Tower, controlling impact noise is particularly important because occupants often expect a high level of acoustic comfort. Excessive footfall noise or structural vibration can negatively affect concentration and create perceptions of poor building quality.
The acoustic design strategy therefore considered floor assemblies, floor finishes, structural systems, and vibration isolation measures to minimize impact-related disturbances throughout the building.
Room Acoustics
While building acoustics focuses on preventing sound from travelling between spaces, room acoustics focuses on how sound behaves within a space itself.
A room with excellent sound isolation may still perform poorly if occupants struggle to understand speech or if excessive reverberation creates an uncomfortable listening environment.
Reverberation Time (RT)
Reverberation Time (RT) is one of the most fundamental room acoustic parameters. It measures how long sound persists within a space after the original sound source has stopped.
When reverberation time is too long, speech becomes blurred and difficult to understand. Conversations overlap, background noise accumulates, and meeting effectiveness can decrease.
Conversely, excessively short reverberation times can make spaces feel acoustically unnatural or acoustically "dead."
Different workplace functions require different reverberation targets. Open offices, meeting rooms, executive boardrooms, collaboration areas, and training facilities each have unique acoustic requirements.
At Kino Tower, reverberation control was achieved through careful coordination of ceiling systems, wall finishes, floor materials, furniture selections, and room geometry. The goal was not simply to reduce sound levels but to create environments that support clear communication and occupant comfort.
Speech Clarity
Speech Clarity refers to the ability of occupants to hear and understand spoken communication accurately within a space.
In workplace environments, poor speech clarity can result in:
Repeated conversations
Miscommunication
Reduced meeting efficiency
Increased cognitive fatigue
Meeting rooms, boardrooms, and collaborative spaces depend heavily on high speech clarity because communication is their primary function.
At Kino Tower, room proportions, surface treatments, and audiovisual integration strategies were carefully coordinated to optimize speech clarity across a variety of workplace settings. This became increasingly important given the growing reliance on hybrid meetings and video conferencing technologies.
Speech Privacy
While some spaces require excellent speech intelligibility, others require speech privacy.
Speech privacy describes the degree to which conversations remain unintelligible outside their intended listening area.
Confidential discussions involving financial matters, legal issues, human resources, executive decision-making, or client negotiations often require a higher level of speech privacy.
Achieving effective speech privacy involves more than simply constructing thicker walls. It requires a holistic understanding of sound transmission paths, including:
Wall performance
Ceiling systems
Door assemblies
Glazing systems
Mechanical penetrations
Flanking transmission paths
At Kino Tower, speech privacy objectives were integrated into workplace planning and architectural design from the earliest stages, helping ensure that confidentiality requirements could be met without compromising design flexibility.
Environmental Noise
Even when room acoustics and sound isolation are carefully designed, background noise can still significantly influence occupant experience.
Environmental noise criteria help establish acceptable ambient noise conditions within occupied spaces.
Noise Criteria (NC)
Noise Criteria (NC) is a widely used rating system for evaluating background noise generated by building services and environmental sources.
NC ratings help quantify whether a space is suitable for its intended use. Different workplace environments require different NC targets.
For example:
Executive boardrooms generally require lower NC levels.
Open-plan offices may tolerate slightly higher levels.
Conference facilities often require very controlled background noise conditions.
If NC levels are too high, occupants may experience difficulty concentrating, increased fatigue, and reduced speech intelligibility.
At Kino Tower, NC targets were established early in the design process and coordinated closely with the mechanical engineering team to ensure HVAC systems could meet both thermal comfort and acoustic performance requirements.
Room Criteria (RC)
Room Criteria (RC) is a more advanced environmental noise assessment method that evaluates not only overall noise levels but also the spectral balance of the noise.
Two spaces may exhibit similar sound pressure levels while producing very different occupant perceptions. One space may sound relatively neutral, while another may generate a low-frequency rumble or tonal hum that occupants find distracting.
RC analysis helps identify these conditions and supports the development of quieter, more acoustically balanced environments.
In modern workplaces where occupants spend extended periods performing cognitively demanding tasks, maintaining appropriate RC performance can significantly enhance comfort and reduce annoyance.
Background Noise Levels
Background noise is often misunderstood as something that should always be minimized.
In reality, the optimal background noise level depends on the function of the space.
If background noise is excessively high, concentration and communication become difficult.
However, if background noise is excessively low, speech privacy can be compromised because conversations become more noticeable and intelligible over greater distances.
At Kino Tower, background noise levels were carefully balanced to support multiple workplace objectives simultaneously, including concentration, communication, comfort, and privacy.
This balance is particularly important in contemporary open-plan workplaces where employees frequently alternate between focused work and collaborative activities.
Electroacoustics
As workplaces become increasingly digital, acoustic performance is no longer limited to architectural and building systems alone.
Electroacoustics addresses the interaction between occupants and technology-based sound systems.
Speech Transmission Index (STI)
Speech Transmission Index (STI) is one of the most important performance metrics used to evaluate speech intelligibility.
STI measures how effectively speech can be understood after accounting for factors such as:
Background noise
Reverberation
Room acoustics
Loudspeaker performance
Signal degradation
The STI scale ranges from 0 to 1.0, with higher values indicating better speech intelligibility.
In modern office environments, STI plays an increasingly important role because communication now occurs through both direct conversation and technology-mediated interactions.
Applications include:
Boardrooms
Conference rooms
Hybrid meeting spaces
Training facilities
Presentation areas
Public address systems
At Kino Tower, STI considerations influenced both room acoustic design and audiovisual system integration. The objective was to ensure that occupants could communicate clearly whether they were speaking face-to-face, participating in a video conference, or attending a presentation.
As hybrid working models continue to expand throughout Indonesia and Asia, STI is becoming a critical indicator of workplace effectiveness, directly influencing communication quality, user experience, and overall organizational performance.
A Whole Building Acoustic Consultation Approach
Moving Beyond Isolated Acoustic Treatments: Integrating Acoustics Across Multiple Building Systems
One of the most common misconceptions in commercial building design is that acoustics can be solved simply by adding acoustic panels after construction is complete. In reality, successful acoustic performance is rarely achieved through isolated treatments alone. Sound interacts with every component of a building, from architectural layouts and façade systems to mechanical equipment and structural elements.
At Kino Tower, acoustics was approached as a whole-building performance strategy rather than a standalone discipline. The objective was not simply to reduce noise levels but to create an integrated acoustic environment that supports communication, concentration, privacy, wellbeing, and workplace productivity.
This holistic approach required collaboration between architects, interior designers, mechanical engineers, structural engineers, building services consultants, and contractors throughout the design and construction process. Each discipline contributed to the overall acoustic performance of the building, ensuring that potential issues were addressed proactively rather than reactively.
By considering acoustics as a shared responsibility across multiple building systems, the project team was able to create a workplace environment where acoustic comfort became an inherent characteristic of the building rather than an afterthought.
Architecture
Space Planning
Architectural planning represented one of the earliest opportunities to influence acoustic performance.
Long before ceiling panels, wall treatments, or sound masking systems were considered, the project team evaluated how different workplace functions would interact within the building. Spaces with similar acoustic requirements were grouped together, while activities with potentially conflicting acoustic characteristics were strategically separated.
For example, quiet work areas requiring concentration were located away from highly active collaboration zones. Executive functions and confidential meeting areas were positioned to minimize exposure to circulation routes and public spaces. This planning strategy reduced the likelihood of acoustic conflicts before detailed design even began.
One of the most effective acoustic solutions is often not an acoustic product at all—it is simply placing the right activities in the right locations.
Zoning Strategy
Acoustic zoning became a key design principle throughout Kino Tower.
Rather than treating the workplace as a single acoustic environment, the building was organized into zones that supported different work modes. These included areas for focused work, collaboration, formal meetings, informal interaction, executive functions, and social engagement.
Each zone was assigned performance targets appropriate to its intended use.
This approach acknowledges an important reality of modern workplaces: different activities require different acoustic conditions. A brainstorming session benefits from a lively atmosphere, while analytical tasks often require greater control over distraction. Effective acoustic zoning allows both activities to coexist within the same building without compromising occupant experience.
Façade Design
The building façade serves as the first line of defense against external noise intrusion.
In urban environments, office buildings are frequently exposed to traffic noise, transportation infrastructure, construction activities, and surrounding commercial developments. If not properly controlled, these external sources can significantly affect occupant comfort.
At Kino Tower, façade acoustic performance was evaluated alongside thermal, daylighting, and architectural considerations. Glazing systems, façade assemblies, and building envelope details were selected to provide appropriate levels of sound insulation while maintaining transparency, energy performance, and visual connectivity.
This integrated approach ensured that occupants could enjoy views and natural daylight without compromising acoustic comfort.
Interior Design
Surface Materials
Interior materials play a significant role in shaping the acoustic character of a workplace.
Hard, reflective surfaces can create excessive reverberation, making spaces feel noisy and increasing the effort required to communicate effectively. Conversely, strategically selected absorptive materials can improve speech clarity, reduce distraction, and create a more comfortable acoustic environment.
At Kino Tower, material selections were evaluated not only for aesthetics and durability but also for their acoustic properties. Wall finishes, flooring systems, fabric elements, and decorative features were carefully coordinated to support the acoustic objectives of each space.
The result was an interior environment where visual design and acoustic performance worked together rather than competing with one another.
Ceiling Systems
Ceilings often represent one of the most influential acoustic elements within office environments.
In open-plan workplaces, ceiling absorption can significantly reduce reverberation and limit the propagation of conversational noise. In meeting rooms, ceiling treatments can enhance speech intelligibility and support more effective communication.
At Kino Tower, ceiling systems were selected based on the functional requirements of individual spaces. Acoustic performance targets were balanced with architectural expression, lighting integration, mechanical coordination, and maintenance requirements.
This careful coordination helped create environments that felt visually refined while delivering meaningful acoustic benefits.
Furniture Integration
Furniture is frequently overlooked as an acoustic design tool.
Workstations, screens, upholstered seating, storage systems, and collaborative furniture all influence how sound travels within a space. Their placement and configuration can affect speech propagation, privacy, and perceived noise levels.
The workplace strategy at Kino Tower incorporated furniture layouts that complemented the broader acoustic zoning approach. Collaborative areas were arranged to encourage interaction while minimizing disruption to nearby focus zones. Furniture systems also contributed to visual and acoustic separation between different workplace functions.
This demonstrates how acoustic performance can be enhanced through thoughtful workplace planning rather than relying solely on architectural interventions.
Mechanical Engineering
HVAC Noise Control
Mechanical systems are among the most common sources of background noise in commercial buildings.
While occupants may not immediately notice a well-designed HVAC system, they quickly become aware of excessive fan noise, air turbulence, diffuser noise, or equipment-generated sound. Poor mechanical acoustics can interfere with communication, increase fatigue, and diminish workplace comfort.
At Kino Tower, HVAC systems were evaluated throughout the design process to ensure acoustic performance targets could be achieved without compromising thermal comfort or energy efficiency.
Equipment selection, airflow velocities, duct sizing, and diffuser configurations were all reviewed from an acoustic perspective to create a balanced indoor environment.
Equipment Isolation
Mechanical equipment can generate both airborne noise and structural vibration.
Chillers, pumps, fans, air handling units, and other building services equipment can transmit energy into the building structure, allowing sound and vibration to travel beyond the equipment room itself.
To mitigate these risks, vibration isolation measures were incorporated into equipment installations where necessary. This reduced the likelihood of structure-borne noise affecting occupied areas and helped preserve workplace comfort throughout the building.
Duct Attenuation
Air distribution systems can act as pathways for sound transmission if not properly designed.
Noise generated within mechanical equipment can travel through ductwork and emerge within occupied spaces. Likewise, duct systems can unintentionally transmit conversations between rooms.
At Kino Tower, duct attenuation strategies were incorporated to manage both equipment-generated noise and cross-room sound transmission. These measures contributed to achieving the desired balance between acoustic performance, ventilation effectiveness, and occupant comfort.
Structural Engineering
Vibration Control
Structural vibration is often invisible but can significantly affect occupant perception of building quality.
Sources of vibration may include mechanical equipment, elevators, transportation infrastructure, or occupant activities. Even when vibration levels are not consciously noticeable, they can contribute to discomfort and acoustic disturbances.
Structural engineers collaborated closely with the acoustic team to identify potential vibration risks and evaluate appropriate mitigation strategies.
This interdisciplinary approach helped ensure that vibration performance supported the overall acoustic objectives of the building.
Structure-Borne Noise Mitigation
Not all sound travels through the air.
Many acoustic problems originate as vibration within the building structure before radiating as audible noise in adjacent spaces. This phenomenon, known as structure-borne noise, can be particularly challenging because it often bypasses conventional sound insulation measures.
The design team therefore evaluated structural connections, equipment interfaces, and vibration transmission pathways throughout the building. By addressing these issues during design, potential problems could be prevented before construction was completed.
Building Services
Vertical Transportation
Elevator systems are critical to modern high-rise buildings, but they can also become significant sources of noise and vibration.
Lift machinery, guide rails, motor systems, and passenger activity can all affect acoustic performance if not properly considered during design.
At Kino Tower, vertical transportation systems were reviewed to ensure that adjacent office spaces, meeting rooms, and executive areas remained protected from unwanted noise intrusion.

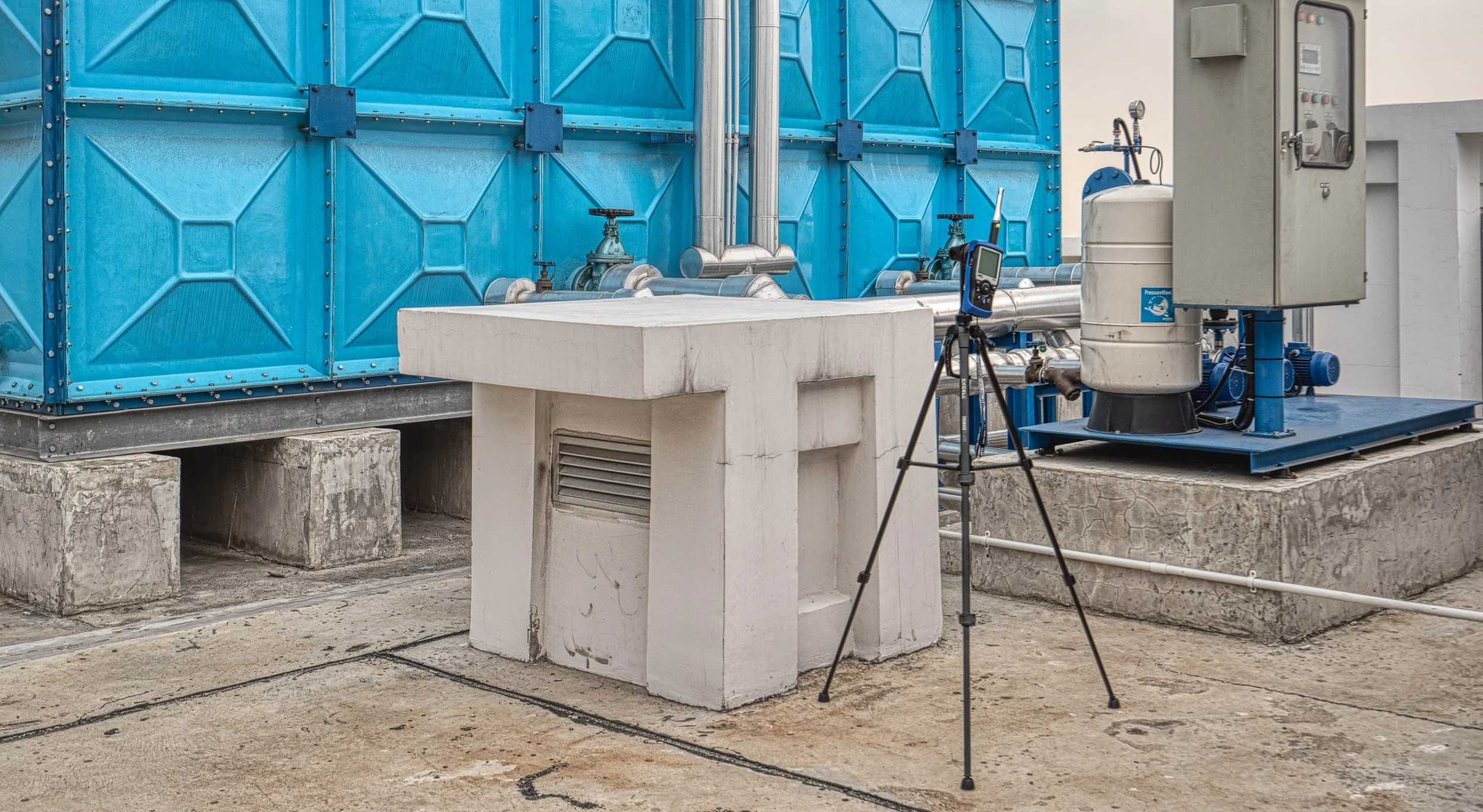

Plant Room Design
Plant rooms often contain some of the loudest equipment within a commercial building.
Without adequate acoustic control, these spaces can negatively affect nearby occupied areas. The location, construction, and detailing of plant rooms therefore play an important role in overall building acoustic performance.
The design team carefully evaluated plant room layouts, enclosure systems, and equipment arrangements to minimize noise transmission throughout the building.
Utility Spaces
Utility rooms, service areas, electrical rooms, and support facilities may not be highly visible to occupants, but they can nevertheless influence acoustic comfort. By incorporating acoustic considerations into these spaces early in the design process, potential sources of nuisance noise could be effectively controlled.
Acoustic Design Strategies Implemented
Creating an Acoustic Ecosystem for Workplace Performance
Rather than treating individual spaces as isolated acoustic challenges, Kino Tower adopted an ecosystem approach to workplace acoustics.
Each component of the workplace was designed to support specific activities while contributing to the overall acoustic balance of the building. The result was an integrated environment where focus, collaboration, communication, and social interaction could coexist successfully.
Open Plan Workspaces
Acoustic Zoning
Open-plan workplaces offer flexibility and encourage interaction, but they also present some of the most complex acoustic challenges.
Acoustic zoning was therefore used to organize work areas according to activity type and noise sensitivity. Focus-oriented workstations were strategically separated from collaboration areas, circulation routes, and social spaces.
This planning strategy reduced unnecessary distractions while preserving workplace connectivity.
Ceiling Absorption
Acoustic ceiling systems played a significant role in controlling reverberation and reducing conversational noise propagation.
By increasing sound absorption throughout open work areas, the design reduced the distance over which speech could travel and improved overall workplace comfort.
Workspace Layout Optimization
The arrangement of workstations, circulation paths, collaborative spaces, and support functions was carefully coordinated to support acoustic performance objectives.
Rather than relying solely on construction-based solutions, workplace planning itself became a powerful acoustic design tool.
Meeting and Collaboration Spaces
Speech Intelligibility
The primary function of a meeting room is communication.
To support effective communication, meeting spaces were designed to achieve high levels of speech intelligibility. Room proportions, finishes, and acoustic treatments were coordinated to ensure that participants could hear and understand one another clearly.
Confidentiality
Many workplace discussions involve sensitive information that must remain private.
Acoustic separation measures were therefore incorporated into meeting rooms to prevent conversations from being overheard outside their intended boundaries.
Room Isolation Performance
Meeting room walls, doors, ceilings, and glazing systems were designed to provide appropriate levels of sound isolation based on room function and occupancy requirements.
This helped ensure that activities within one room would not disrupt adjacent spaces and vice versa.

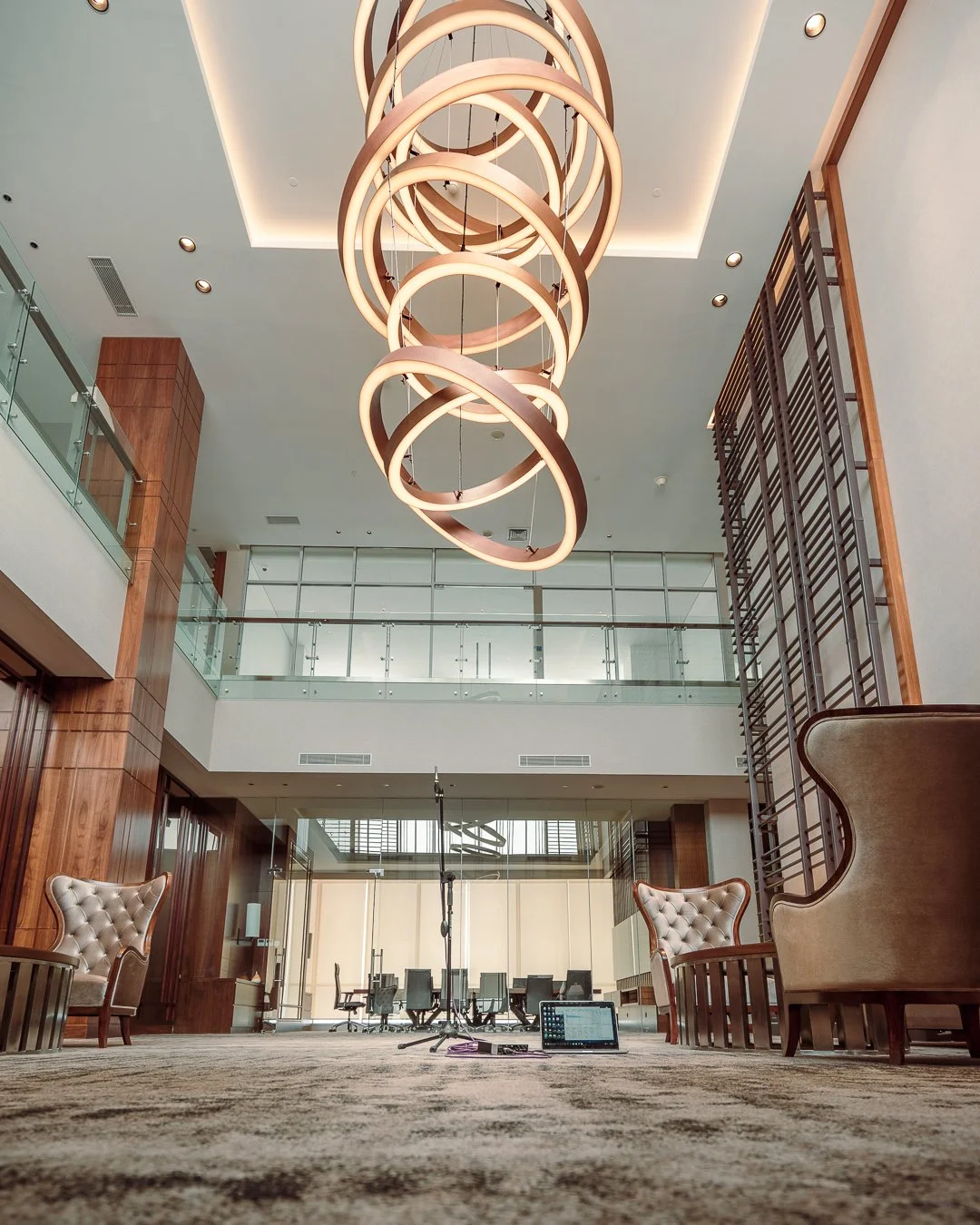

Executive and Board Rooms
Premium Acoustic Environments
Executive spaces often require a higher standard of acoustic performance than typical workplace areas.
These environments support strategic decision-making, leadership discussions, client presentations, and high-value business interactions.
At Kino Tower, executive spaces were designed to provide an elevated acoustic experience consistent with their importance within the organization.
High Speech Clarity
Speech clarity was prioritized to support effective communication during meetings, presentations, and discussions.
This helped reduce listening effort and improve overall meeting effectiveness.
Hybrid Meeting Readiness
As hybrid work becomes increasingly common, executive spaces must perform equally well for in-person and remote participants.
Acoustic design therefore worked closely with audiovisual systems to support video conferencing, remote collaboration, and digital communication technologies.

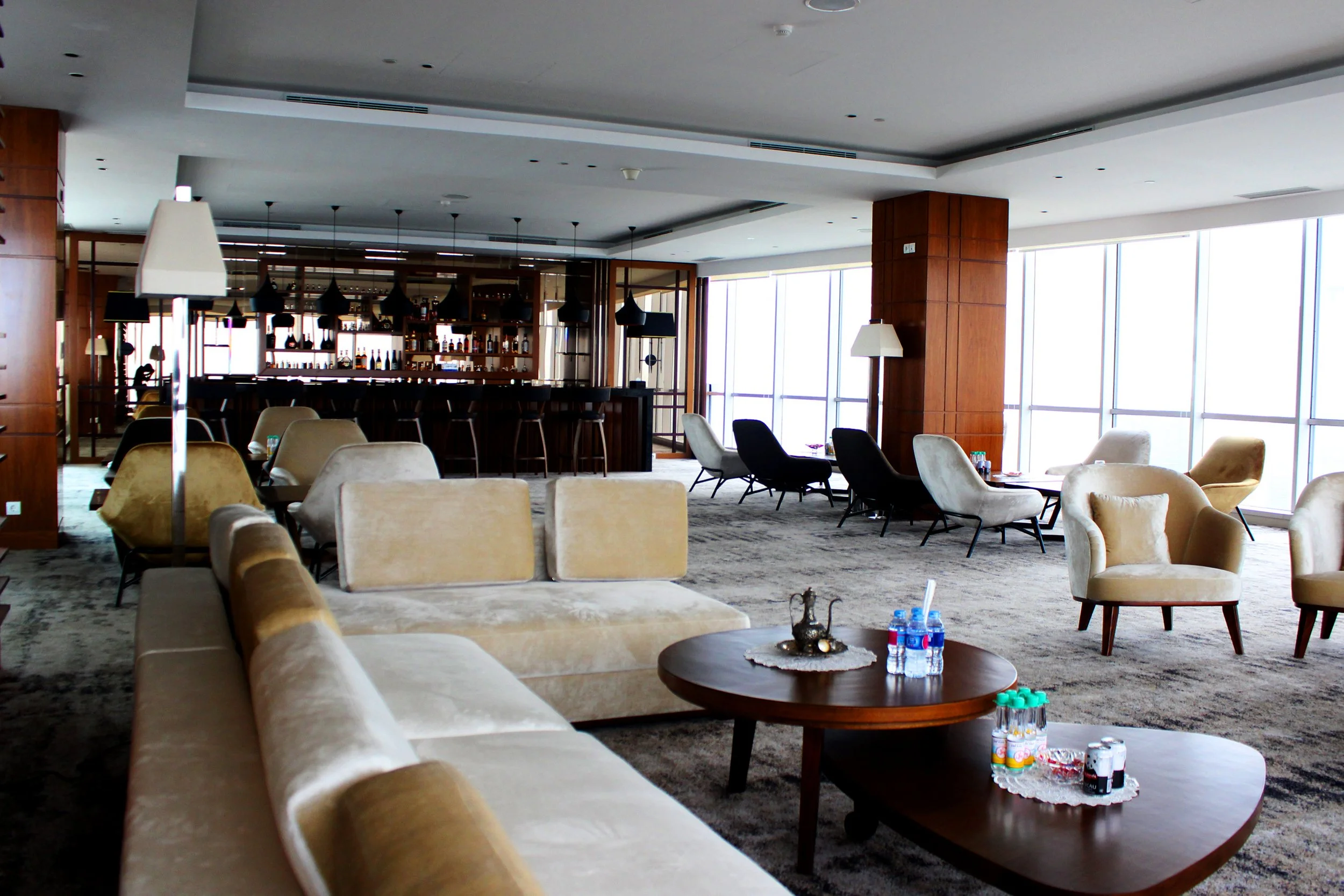

Breakout and Social Areas
Managing Activity Without Creating Distraction
Social interaction is an essential component of workplace culture.
Breakout spaces, cafés, informal meeting areas, and collaborative hubs contribute to employee engagement and organizational connectivity. However, these spaces can also become significant sources of workplace noise.
At Kino Tower, social spaces were strategically located and acoustically managed to support lively interaction while minimizing disturbance to adjacent work zones.
This balance allowed the workplace to remain vibrant without sacrificing concentration and productivity.
Building Services and Plant Areas
Mechanical Noise Mitigation
Mechanical equipment was evaluated not only for operational performance but also for acoustic impact.
Noise mitigation measures were integrated into equipment selection, room design, and system configuration to minimize disturbance to occupants.
Vibration Isolation
Vibration isolation strategies were incorporated where necessary to prevent structure-borne noise transmission from mechanical systems and building services equipment.
Equipment Selection Criteria
Acoustic performance became one of the criteria used when evaluating building systems and equipment options.
Rather than addressing noise problems after installation, potential acoustic impacts were considered during equipment selection, supporting a more proactive and efficient design process.
Through this comprehensive approach, Kino Tower transformed acoustics from an isolated technical requirement into a strategic component of workplace performance, creating an environment that supports focus, collaboration, wellbeing, and long-term organizational success.Collaboration Across Disciplines
The Value of Early Acoustic Integration
One of the most important lessons from successful workplace projects is that acoustics should not be treated as a specialist service introduced near the end of design. Instead, acoustic performance should be considered from the earliest project stages alongside architecture, interior design, mechanical engineering, and workplace strategy. This philosophy forms the foundation of a successful whole building workplace acoustic consultation approach.
When acoustic consultants are engaged early, design teams gain the opportunity to influence critical decisions before they become difficult or expensive to modify. Space planning, façade design, workplace zoning, mechanical system selection, and interior material strategies can all be optimized to support acoustic objectives. As a result, the project benefits from better performance, lower risk, and improved occupant experience.
In contrast, projects that address acoustics only after construction documents are completed often face significant limitations. By that stage, many of the most effective acoustic design opportunities have already been lost, leaving teams with fewer options and higher costs.
For Kino Tower, early acoustic integration allowed the project team to align workplace objectives, building performance targets, and occupant wellbeing goals from the very beginning of the design process.
Working Alongside Architects and Interior Designers
Design Workshops
A successful whole building workplace acoustic consultation begins with collaboration.
Rather than operating as an isolated technical discipline, acoustics was integrated into multidisciplinary design workshops involving architects, interior designers, workplace strategists, engineers, and project stakeholders. These workshops created opportunities to discuss how people would use the building and what acoustic conditions would best support those activities.
Discussions extended beyond traditional acoustic concerns such as noise control and sound insulation. The team explored broader questions relating to workplace culture, employee wellbeing, communication patterns, collaboration requirements, and future workplace flexibility.
By participating in these conversations early, acoustic recommendations could be integrated naturally into the design process rather than appearing as constraints later in the project.
Performance-Driven Decision Making
Many design decisions influence acoustic performance, even when acoustics is not immediately visible.
For example, the location of meeting rooms, the arrangement of workstations, the selection of façade systems, and the choice of ceiling materials all affect how sound behaves within a building. Early acoustic involvement allowed these decisions to be evaluated through a performance-based lens.
Instead of relying solely on prescriptive solutions, the project team focused on achieving specific workplace outcomes. Questions such as "How can we improve speech privacy?" or "How can we reduce distraction in focus areas?" became central to the design discussion.
This performance-driven approach enabled acoustic objectives to support broader business goals, including productivity, employee satisfaction, and workplace effectiveness.
Balancing Aesthetics and Acoustics
One of the most rewarding aspects of working with architects and interior designers is finding solutions that achieve both aesthetic and acoustic objectives.
There is a common misconception that acoustic design requires visible acoustic panels or compromises architectural expression. In reality, some of the most successful acoustic environments are created through subtle integration rather than obvious intervention.
At Kino Tower, acoustic considerations were incorporated into ceiling designs, material selections, workplace layouts, and architectural detailing in ways that complemented the overall design vision. The objective was not to make the building look acoustic, but to make it perform acoustically.
This balance between aesthetics and performance is a defining characteristic of high-quality workplace design.
Coordination with Engineers and Contractors
Technical Review Process
Acoustic performance depends on the successful coordination of multiple building systems.
Throughout the project, acoustic consultants worked closely with mechanical, structural, electrical, and building services engineers to review technical design solutions and identify potential acoustic risks.
These reviews considered factors such as:
Mechanical equipment noise
Vibration transmission paths
Façade sound insulation
Building service penetrations
Ceiling and wall construction details
Room acoustic performance
The technical review process helped ensure that acoustic objectives remained aligned with the broader engineering strategy of the building.

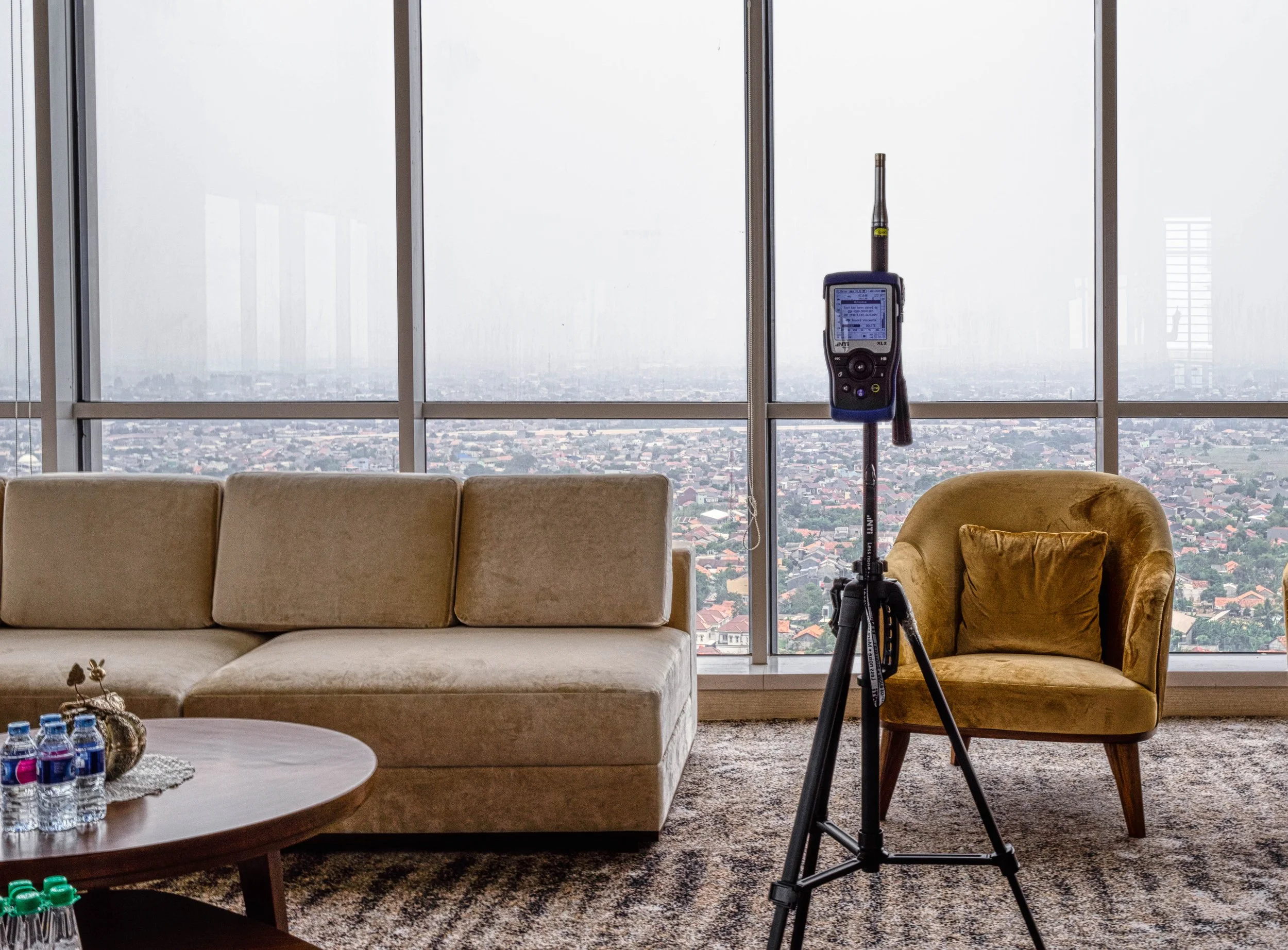

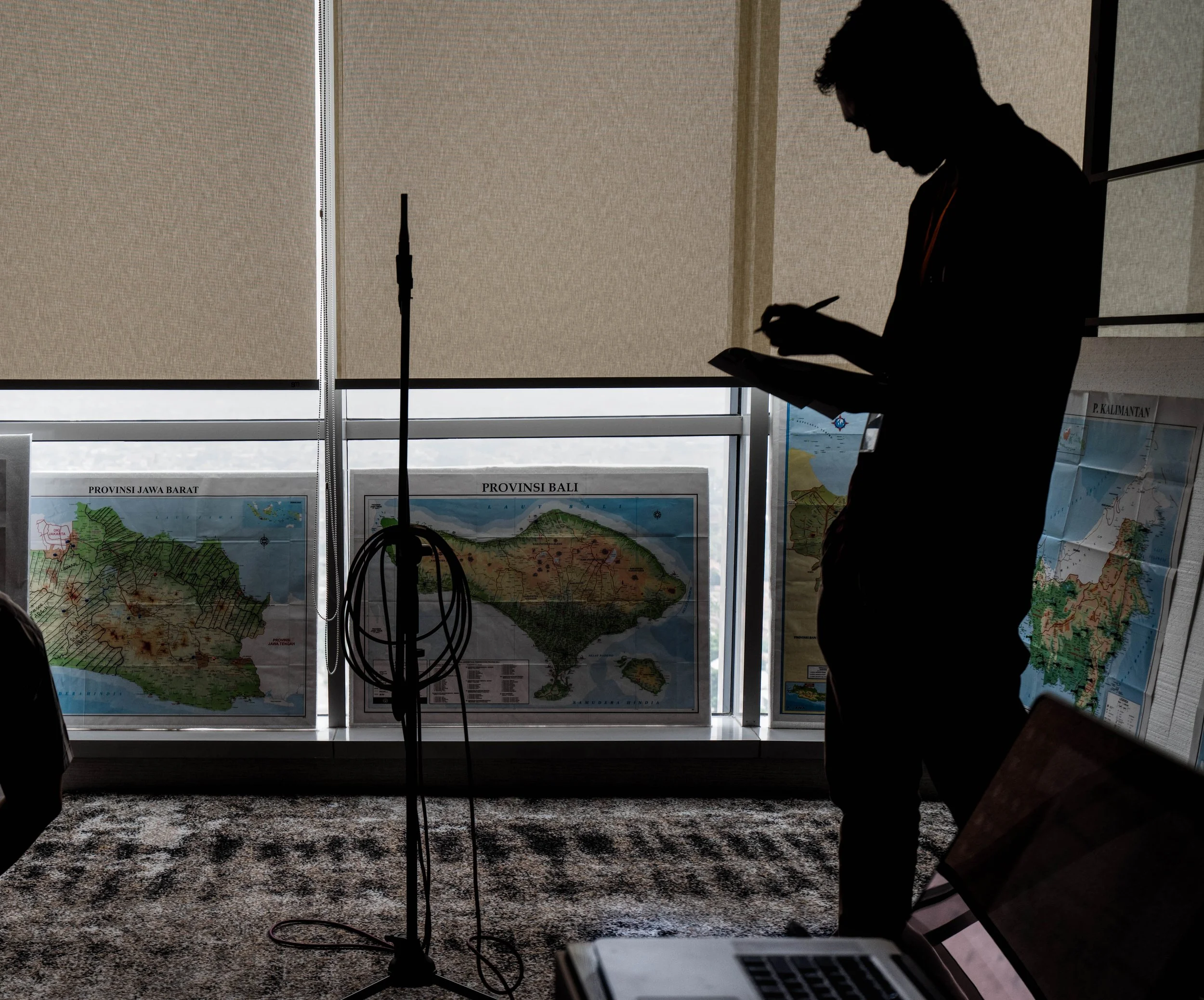

Design Verification
A key component of a comprehensive whole building workplace acoustic consultation is design verification.
Acoustic performance cannot be assumed. It must be evaluated and verified throughout design development.
This process may include:
Acoustic calculations
Computer modeling
Noise assessments
Vibration analysis
Performance simulations
Peer reviews
Verification activities help confirm that proposed design solutions are capable of achieving the intended acoustic outcomes before construction begins.
For Kino Tower, design verification provided confidence that workplace performance targets could be achieved while minimizing the risk of unexpected issues during occupancy.
Construction Quality Control
Even the best acoustic design can fail if construction quality is not properly managed.
Acoustic performance is highly dependent on installation details. Small gaps around partitions, poorly sealed penetrations, improperly installed doors, or changes in construction materials can significantly affect final performance.
For this reason, acoustic considerations extended beyond design into construction quality control.
Regular reviews and coordination with contractors helped ensure that acoustic intent was preserved throughout the construction process. This attention to detail reduced the likelihood of performance gaps and contributed to a smoother project delivery.
Preventing Costly Late-Stage Modifications
Avoided Redesign
One of the most significant advantages of early acoustic involvement is the ability to prevent redesign.
When acoustic issues are discovered late in a project, corrective measures often require changes to architectural layouts, mechanical systems, or interior fit-outs. These changes can disrupt project schedules and increase costs.
By identifying potential acoustic challenges early, the Kino Tower project team was able to incorporate solutions into the design process before they became major problems.
This proactive approach reduced design revisions and improved project certainty.
Reduced Retrofit Costs
Retrofitting acoustic solutions after occupancy is often far more expensive than integrating them during design.
Additional wall construction, ceiling modifications, equipment replacement, or corrective treatments can quickly increase project costs. In many cases, retrofit solutions also provide less flexibility and lower performance than properly integrated design solutions.
A whole building workplace acoustic consultation approach helps minimize these risks by addressing acoustic performance proactively rather than reactively.
Improved Project Efficiency
Early acoustic integration also improves project efficiency.
When acoustic objectives are clearly defined and coordinated from the beginning, design decisions can be made with greater confidence. Potential conflicts are identified earlier, coordination becomes more effective, and project teams spend less time resolving avoidable issues.
The result is a more streamlined design process that supports both project delivery and building performance objectives.
Connecting Building Physics with Human Experience
Acoustics is often viewed as a technical engineering discipline, but its ultimate purpose is deeply human.
Occupants do not experience acoustic metrics directly. They experience the ability to concentrate, communicate, collaborate, and feel comfortable within a space.
This is where building physics intersects with human experience.
A successful whole building workplace acoustic consultation focuses not only on controlling sound but also on supporting the people who occupy the building every day.
At Kino Tower, acoustic performance was evaluated as part of a broader human-centered building performance strategy that considered how environmental conditions influence occupant wellbeing, satisfaction, and productivity.
The Relationship Between Sound and Human Performance
Cognitive Performance
Modern workplaces increasingly depend on knowledge-based activities that require sustained concentration and mental effort.
Research consistently demonstrates that excessive noise and speech distraction can negatively affect cognitive performance. Employees may require additional time to complete tasks, experience increased mental fatigue, or struggle to maintain focus.
By reducing unnecessary distractions and supporting appropriate acoustic conditions, workplace design can help improve concentration and overall work effectiveness.
Stress Reduction
Noise is not merely an inconvenience. It can also be a source of physiological and psychological stress.
Continuous exposure to distracting or unpredictable sound can increase cognitive load and contribute to occupant discomfort.
Acoustically comfortable environments help create a greater sense of control and predictability, supporting lower stress levels and a more positive workplace experience.
Employee Satisfaction
Employees may not always recognize the technical reasons behind a comfortable workplace, but they quickly recognize how a space makes them feel.
Acoustic comfort contributes directly to perceptions of workplace quality. Employees who can focus effectively, communicate clearly, and work without constant interruption are generally more satisfied with their work environment.
Workplace Engagement
Workplace engagement is influenced by many factors, including organizational culture, leadership, workplace design, and environmental quality.
Acoustics supports engagement by creating environments where employees can participate confidently in meetings, collaborate effectively with colleagues, and perform focused work without unnecessary frustration.
A well-designed acoustic environment ultimately supports the behaviors that organizations seek to encourage.
Supporting Human-Centered Workplace Design
A truly human-centered workplace recognizes that occupants experience multiple environmental conditions simultaneously.
Acoustics cannot be considered in isolation.
Acoustics and Lighting
Visual and acoustic comfort often work together to influence workplace satisfaction.
A beautifully illuminated space may still perform poorly if speech distraction and background noise prevent occupants from concentrating. Similarly, excellent acoustic conditions may be undermined by poor visual comfort.
Integrating acoustics and lighting creates more balanced workplace experiences.
Acoustics and Thermal Comfort
Thermal comfort and acoustic comfort are frequently interconnected.
Mechanical systems must provide adequate ventilation and temperature control while maintaining acceptable noise levels. Successful workplace environments achieve both objectives simultaneously.
Acoustics and Indoor Environmental Quality
Acoustic comfort is increasingly recognized as an essential component of Indoor Environmental Quality (IEQ), alongside air quality, thermal comfort, and visual comfort.
This integrated perspective aligns closely with human-centered building performance principles and workplace wellbeing initiatives.
Creating Spaces for Different Modes of Work
Modern workplaces support a wide range of activities throughout the day.
A successful whole building workplace acoustic consultation acknowledges that no single acoustic environment can support every activity equally well.
Focus Work
Tasks requiring concentration benefit from environments that minimize distraction and support sustained cognitive effort.
These areas typically require greater control over speech propagation and background noise.
Collaboration
Collaboration spaces should encourage interaction while maintaining sufficient acoustic control to prevent disruption to adjacent work areas.
The objective is not silence, but effective communication.
Learning
Training rooms, seminar spaces, and knowledge-sharing environments depend heavily on speech intelligibility and listening comfort.
Acoustic design helps ensure that information can be communicated clearly and efficiently.
Social Interaction
Social spaces play an important role in workplace culture and employee wellbeing.
Acoustic design allows these spaces to remain vibrant and engaging without negatively affecting nearby work environments.
Outcomes and Project Impact
Delivering Measurable Value Through Acoustic Design
The success of Kino Tower's whole building workplace acoustic consultation approach can be measured not only through technical performance metrics but also through the value delivered to occupants, owners, tenants, and project teams.
Benefits for Occupants
Improved Concentration
Acoustic design strategies reduced unnecessary distractions and supported environments conducive to focused work.
Enhanced Privacy
Confidential discussions could take place with greater confidence due to improved speech privacy and sound isolation performance.
Better Communication
Meeting rooms and collaborative spaces provided clearer speech transmission and improved communication effectiveness.
Reduced Fatigue
By reducing listening effort and minimizing environmental distractions, the workplace supported greater comfort throughout the workday.
Benefits for Building Owners and Tenants
Higher Workplace Satisfaction
A comfortable acoustic environment contributes directly to overall workplace satisfaction and employee experience.
Improved Tenant Experience
High-performance workplaces are increasingly valued by corporate occupiers seeking environments that support wellbeing and productivity.
Stronger Asset Value
Buildings that provide superior occupant experiences often maintain stronger market competitiveness and long-term value.
Future-Ready Workplace Environment
As workplace expectations continue to evolve, acoustically resilient buildings are better positioned to support future organizational needs.
Benefits for Design Teams
Integrated Design Outcomes
Early collaboration enabled acoustic objectives to be seamlessly integrated with architectural, interior, mechanical, and structural design goals.
Reduced Risk
Potential acoustic issues were identified and resolved earlier, reducing the likelihood of costly surprises during construction or occupancy.
Enhanced Project Quality
Perhaps most importantly, the project demonstrated how multidisciplinary collaboration can elevate overall building performance.
Rather than functioning as an isolated technical discipline, acoustics became a strategic contributor to workplace quality, occupant wellbeing, and long-term building value. Through a comprehensive whole building workplace acoustic consultation approach, Kino Tower illustrates how integrated acoustic design can help create workplaces that are not only quieter, but healthier, more productive, and better aligned with the needs of modern organizations.
Lessons Learned from Kino Tower
Key Takeaways for Future Workplace Developments
Acoustics Should Start at Concept Design, discussion of why early engagement creates better outcomes. Whole Building Thinking Delivers Better Results, Explanation of how acoustics affects every building system. Human-Centered Performance Requires Multidisciplinary Collaboration which Connecting architecture, engineering, technology, and workplace strategy.
Conclusion
Building Better Workplaces Through Whole Building Acoustic Consultation
Summary of Kino Tower's acoustic journey.
Importance of integrating acoustics throughout design and construction.
The growing role of acoustic consultants in delivering high-performance workplaces across Indonesia and Asia.
Final message: workplace acoustics is not merely a technical requirement; it is a strategic investment in people, organizational performance, and long-term building value.
Looking for an Acoustic Consultant for Your Office Development?
Discuss how an integrated whole-building acoustic consultation approach can help:
Office towers
Corporate headquarters
Mixed-use developments
Workplace fit-outs
Commercial buildings
Premium real estate projects
Related Services:
Workplace Acoustic Consulting
Whole Building Acoustic Design
Noise and Vibration Control
Human-Centered Building Performance Consulting
LEED and WELL Acoustic Performance Consulting
Architectural Acoustics and Electroacoustics Design
This structure closely follows the project-storytelling approach used by leading firms such as Arup, Buro Happold, and Atelier Ten: challenge → performance objectives → integrated design process → technical strategy → human outcomes → business value. It positions the project not as an acoustic treatment exercise, but as a building performance success story.
